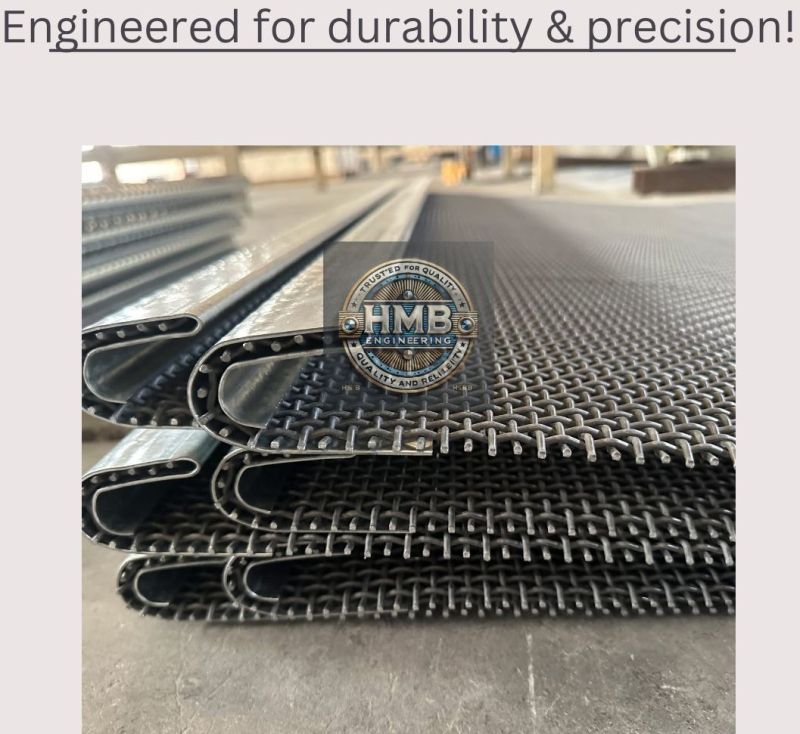

Vibrating Wire Mesh Screen




Features

  • Resistant to wear and abrasions
  • Highly resistant to heavy impact
  • High temperature resistance
  • High tensile strength
  • Tough design
  • Long service life
  • Excellent stability
  • Improved the separating efficiency


Applications

  • Construction industry
  • Metallurgy industry
  • Mineral industry
  • Agriculture industry
  • Plastic industry
  • Coal industry
  • Chemical industry

Specifications

Range of Production 0.5mm to 150mm
Wire Size 0.3mm to 16mm
Material Spring Steel, Stainless Steel, Mild Steel, Copper, Brass
Edge Preparation K-1, K-2, K-3, K-4, K-5, K-6, K-7 S, U
Crimp Type Double Crimp, Intermediate, Dovex, Lock Crimp
Weave Type Plain Dutch Weave, Plain Weave, Twill Weave, Reverse Dutch Weave, Twilled Dutch Weave, Panel, Cable
